AUSTIN, Texas Scientists using ice-penetrating radar data collected by NASA’s Operation IceBridge and earlier airborne campaigns have built the first comprehensive map of layers deep inside the Greenland Ice Sheet, opening a window on past climate conditions and the ice sheet’s potentially perilous future.
This new map allows scientists to determine the age of large swaths of the second largest mass of ice on Earth, an area containing enough water to raise ocean levels by about 20 feet.
“This new, huge data volume records how the ice sheet evolved and how it’s flowing today,” said Joe MacGregor, the study’s lead author, a glaciologist at The University of Texas at Austin Institute for Geophysics (UTIG), a unit of the Jackson School of Geosciences.
Greenland’s ice sheet has been losing mass during the past two decades, a phenomenon accelerated by warming temperatures. Scientists are studying ice from different climate periods in the past to better understand how the ice sheet might respond in the future.
Ice cores offer one way of studying the distant past. These cylinders of ice drilled from the ice sheet hold evidence of past snow accumulation and temperature and contain impurities such as dust and volcanic ash compacted over hundreds of thousands of years. These layers are visible in ice cores and can be detected with ice-penetrating radar.
Ice-penetrating radar works by sending radar signals into the ice and recording the strength and return time of reflected signals. From those signals, scientists can detect the ice surface, sub-ice bedrock and layers within the ice.
New techniques used in this study allowed scientists to efficiently pick out these layers in radar data. Prior studies had mapped internal layers, but not at the scale made possible by these newer, faster methods.
Another major factor in this study was the scope of Operation IceBridge’s measurements across Greenland, which included flights that covered distances of tens of thousands of kilometers across the ice sheet.
“IceBridge surveyed previously unexplored parts of the Greenland Ice Sheet and did it using state-of-the-art CReSIS radars,” said study co-author Mark Fahnestock, an IceBridge science team member and glaciologist from the Geophysical Institute at the University of Alaska Fairbanks (UAF-GI).
CReSIS is the Center for Remote Sensing of Ice Sheets, a National Science Foundation science and technology center headquartered at the University of Kansas in Lawrence, Kansas.

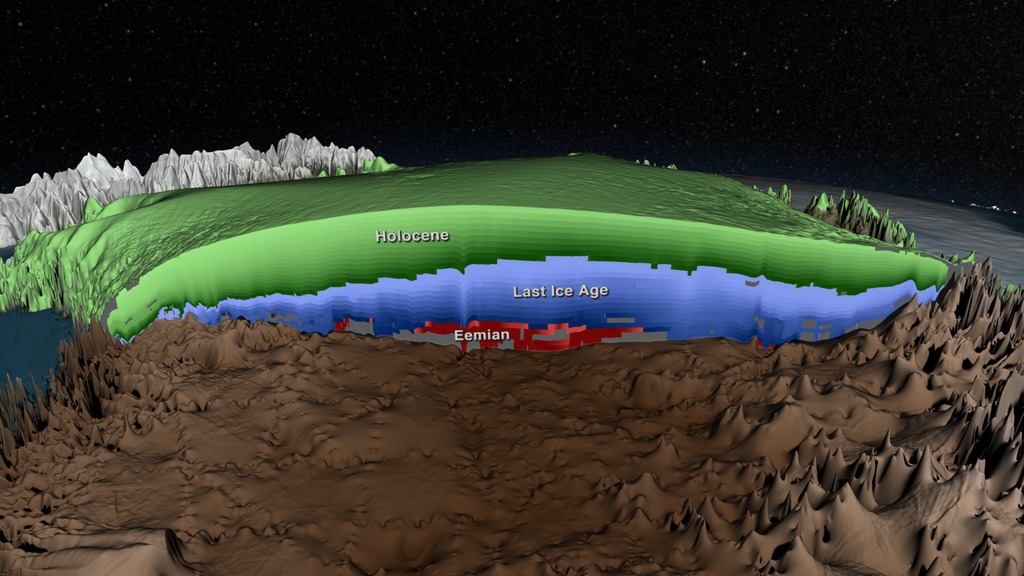

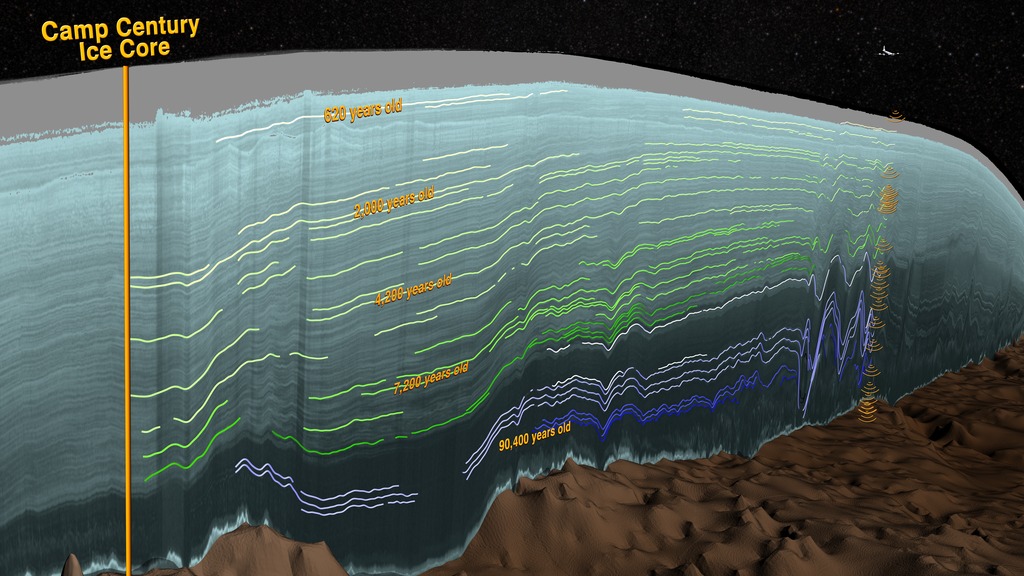

IceBridge’s flight lines often intersect ice core sites where other scientists have analyzed the ice’s chemical composition to map and date layers in the ice. These core data provide a reference for radar measurements and provide a way to calculate how much ice from a given climate period exists across the ice sheet, something known as an age volume. Scientists are interested in knowing more about ice from the Eemian period, a time from 115,000 to 130,000 years ago that was about as warm as today. This new age volume provides the first data-driven estimate of where Eemian ice may remain.
Comparing this age volume to simple computer models helped the study’s team better understand the ice sheet’s history. Differences in the mapped and modeled age volumes point to past changes in ice flow or processes such as melting at the ice sheet’s base. This information will be helpful for evaluating the more sophisticated ice sheet models that are crucial for projecting Greenland’s future contribution to sea-level rise.
“Prior to this study, a good ice-sheet model was one that got its present thickness and surface speed right. Now, they’ll also be able to work on getting its history right, which is important because ice sheets have very long memories,” said MacGregor.
This study was published online on Jan. 16, 2015, in Journal of Geophysical Research: Earth Surface. It was a collaboration among scientists at UTIG, UAF-GI, CReSIS and the Department of Earth System Science at the University of California, Irvine. It was supported by NASA’s Operation IceBridge and the National Science Foundation’s Arctic Natural Sciences.
For more information on Operation IceBridge, visit: www.nasa.gov/icebridge.
For a video of the project, visit: https://www.youtube.com/watch?v=u0VbPE0TOtQandfeature=youtu.be
